Customizable Reinforced Graphite Gasket Sheet For Cryogenic And High Vacuum Systems

Name: Customizable Reinforced Graphite Gasket Sheet For Cryogenic And High Vacuum Systems
Brand: CLINGSEAL
Price: 2.15 USD

Buy cheap Customizable Reinforced Graphite Gasket Sheet For Cryogenic And High Vacuum Systems product

Brand Name : CLINGSEAL

Model Number : CS1080T

Certification : ISO,SGS

Place of Origin : CHINA

MOQ : 500KGS

Price : USD 2.15-3.0 PER KG

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100Tons per month

Delivery Time : 1-4 weeks

Packaging Details : pallets or wooden case

Grade : Industrial Grade

Application : Suitable for high temperature and high pressure environments

Type : Flexible Sheet,Composite Sheet,Reinforced Sheet

C content (%) : 99.9%,99%

Thickness : 1.5mm

Material : Graphite

Density : 1.0 g/cm3

Shape : can be customized

Hardness : 80 Shore A

Product name : Graphite sheet

Color : Black

Sample : Availble

Width : ≤1500 mm

Compressibility (%) : 10–20

Temperature Range : -200°C to 550°C

Sealing Performance : High

Compressibility : ≥ 40%

Tensile Strength : ≥ 4.5 MPa

Product Type : Gasket sheet

Reinforcement Material : Metal

Chemical Resistance : Excellent

Pressure Range : Up to 200 bar

Recovery : ≥ 15%

Contact Now

Customizable Reinforced Graphite Gasket Sheets For Cryogenic And High-Vacuum Systems

Discover our top - tier customizable reinforced graphite gasket sheets, designed specifically for cryogenic and high - vacuum systems. These gasket sheets are available in thicknesses ranging from 1.0 to 6.0 mm, with the recommendation to choose the thinnest suitable option for your particular application.

Product Composition

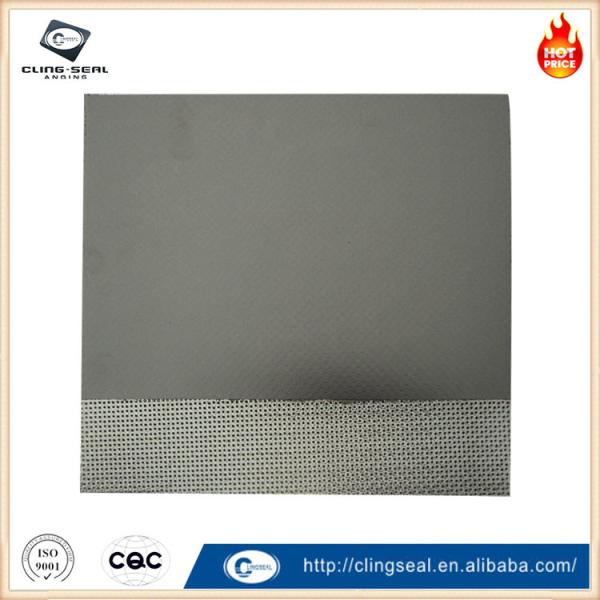

Our graphite gasket sheets are crafted with two layers of pure, flexible graphite sheet, sandwiching a 0.2 - 0.25 mm perforated metal insert. The metal insert can be made of 0.2 - 0.25 mm carbon steel (also known as tinplate), or alternatively, stainless steel grades such as ss201, 304, or 316. You can also select from various carbon content levels: 95%, 97%, 98%, or 99%.

Product Features

Exceptional Adaptability and Durability: These gasket sheets offer outstanding adaptability, ensuring a long - lasting and reliable seal. They are highly resistant to delamination, providing a high - yield solution for your sealing needs.
Economical Sealing Solution: They serve as an economical choice for sealing applications, especially in exhaust and manifold gasket scenarios.
Superior Oil Resistance: With excellent oil - resistance properties, they are well - suited for applications where exposure to oil is a factor.
High Temperature and Pressure Resilience: Ideal for use in high - temperature and high - pressure environments, these gasket sheets can withstand the harshest conditions, making them suitable for steam cycling and exhaust applications.

Customizable Reinforced Graphite Gasket Sheet For Cryogenic And High Vacuum Systems

Product Applications

Designed for a wide range of applications, our customizable reinforced graphite gasket sheets are perfect for oil sealing and gasket applications, particularly in cylinder head gaskets. They are also highly suitable for cryogenic and high - vacuum systems, where a reliable and tight seal is crucial.

Product Sizes

Thickness: Available in thicknesses from 1.0 - 6.0 mm. For thicker options, we offer the 3 + 2 type (with the product section from top to bottom in the order of Paper - Metal - Paper - Metal - Paper) and utilize multi - paper bonding technology.
Standard Sizes: We provide standard sizes including 500500mm, 5001000mm, 5001500mm, 10001000mm, and 1000*1500mm. However, we understand that every project is unique, so we also offer custom sizing to meet your specific requirements.

If you can't find the exact product you need or require a bespoke material, don't hesitate to contact us. We're here to assist you in finding the perfect sealing solution.

Not sure if graphite is the best material for your application? Consult our gasket material selector or our guide to rubbers to make an informed decision.

Purchase your customizable reinforced graphite gasket sheets for cryogenic and high - vacuum systems today and experience the difference in quality and performance.

This updated description should better appeal to international clients. If you have any particular sections you'd like to expand on, such as product applications in more detail, let me know so I can further refine the content.

Physical Property:

Item		Data
Tensile Strength (MPa,min.)		≥30
Compressibility (%,)		10-20
Recovery (%)		≥35
150ºC, At IRM 903# for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
21ºC~30ºC, At B Fuel for 5hours	Thickness Increase(%)	≤10
	Weight Increase(%)	≤10
Thickness Deviation(mm)		0.05

Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas
